ZAvblue
Compact centrifugal fan with reduced running sound
Three-dimensional bucket geometry for applications with confined spaces.
Higher airflow with smaller fan size
High energy cost saving
More compact and smaller as market standard – drop-in replacement
Hardly any deflection losses thanks to bionic blade geometry
Production from a one-shot injection molding
Models
2 versions of this series — data from the ZIEHL-ABEGG product catalogue.

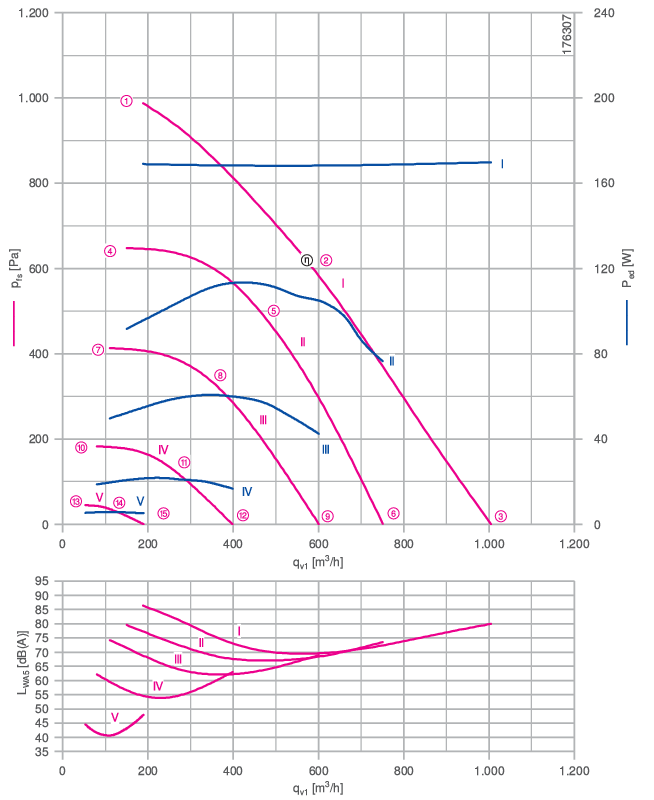

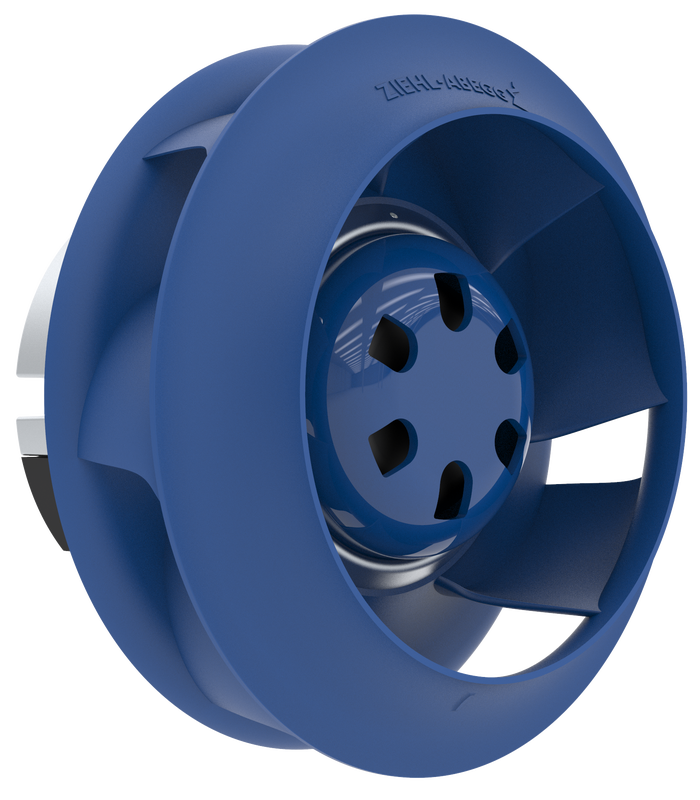

ZAvblue RH16V-4IP.Z8.AR
Item no. 191185
- Design
- Motorized impeller RH
- Size
- 160 mm
- Motor technology
- ECblue
- Max. air flow
- 1,005 m³/h
- Max. pressure
- 988 Pa
- Efficiency (ηstatA)
- 70.1 %
- Conformity
- ErP 2026
- Voltage
- 230 V
- Frequency
- 50 / 60 Hz
- Phases
- 1~
- Protection class
- IP54
- Weight
- 1.3 kg

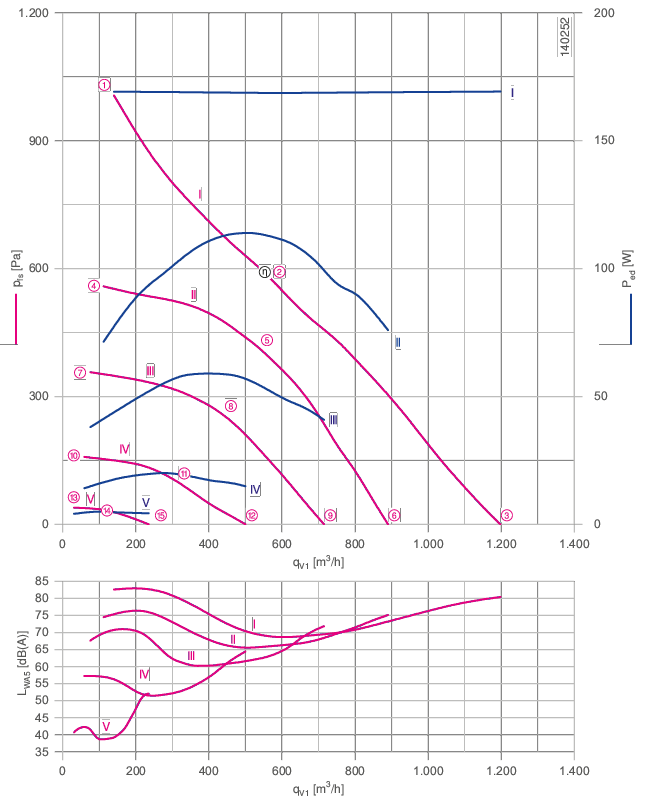

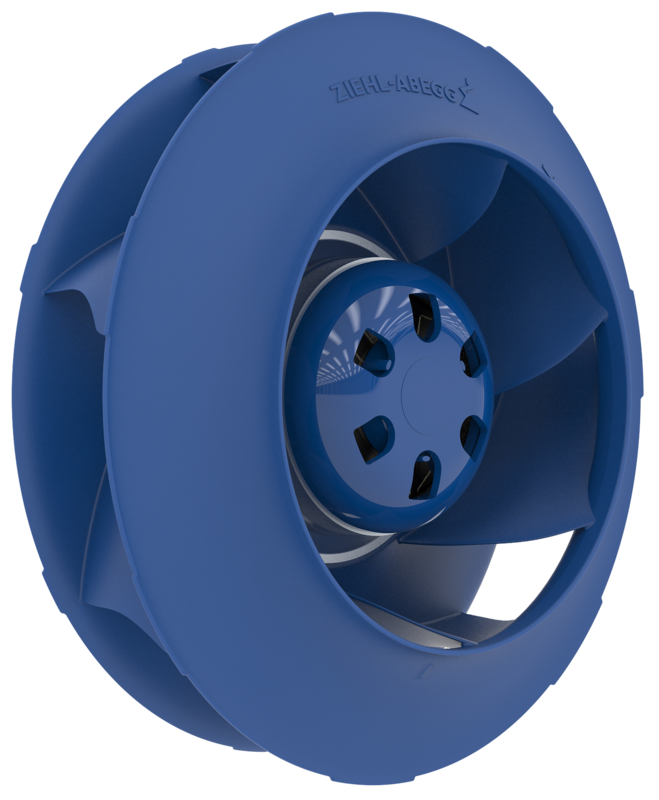

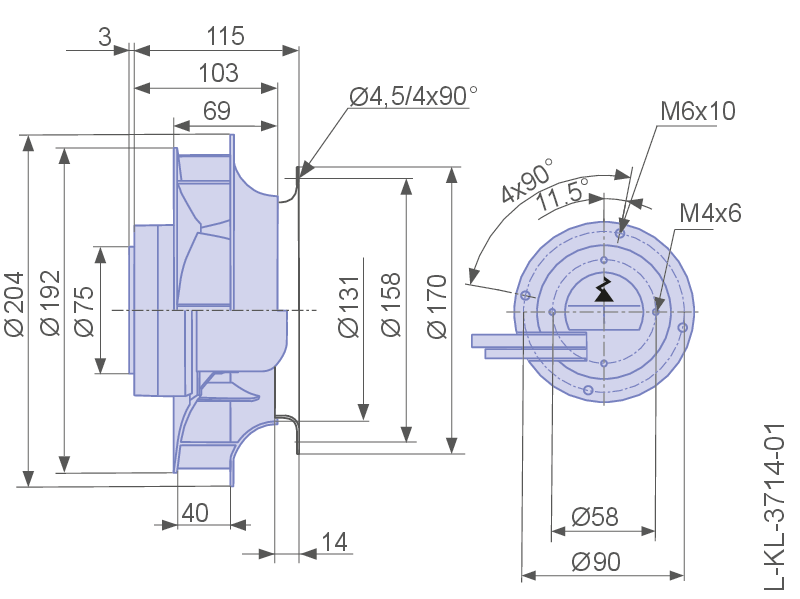

ZAvblue RH20V-4IP.Z8.AR
Item no. 178679
- Design
- Motorized impeller RH
- Size
- 200 mm
- Motor technology
- ECblue
- Max. air flow
- 1,198 m³/h
- Max. pressure
- 1,006 Pa
- Efficiency (ηstatA)
- 64.5 %
- Conformity
- ErP 2026
- Voltage
- 230 V
- Frequency
- 50 / 60 Hz
- Phases
- 1~
- Protection class
- IP54
- Weight
- 1.4 kg
Fields of application
- Building › AC Unit
- Building › Commercial Ventilation
- Building › Residential Ventilation
- Food › CEA: Greenhouse / Vertical Farming
- Food › Cold preservation
- Food › Pasta / Coffee / Tea / Spices
- Food › Industrial Cooking / Bakery / Confectionary
- Food › Beverage processing
- Food › Food service equipment
- Machine & Industrial Processes › AHU
- Energy & Environment › PV-Inverter
- Energy & Environment › High Power Charger
- Mobile › HVAC
- Clean Room & Medical Technologies › Clean Room Workstation
