Frequency converters for speed control of fans
Demand-based speed control of fans with integrated sine-wave filter and protection class IP54.
Technical data
- Strom A
- 1~ 4–10 / 3~ 2,5–50
Models
15 versions of this series — data from the ZIEHL-ABEGG product catalogue.

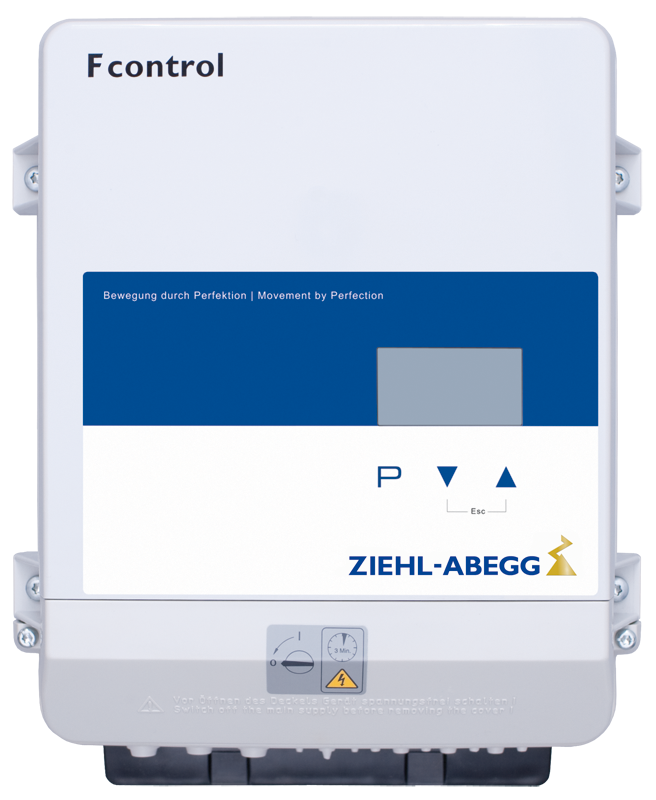

Fcontrol Basic FSDM10AM Fcontrol Basic
Item no. 308260
- Rated voltage
- 400 V
- Frequency
- 50 / 60 Hz
- Rated current
- 10 A
- Protection class
- IP54
- Max. ambient temperature
- 55 °C
- Weight
- 7 kg
- Dimensions (L × W × H)
- 250 × 195.5 × 302 mm
Fcontrol Basic FSDM16AM Fcontrol Basic
Item no. 308303
- Rated voltage
- 400 V
- Frequency
- 50 / 60 Hz
- Rated current
- 16 A
- Protection class
- IP54
- Max. ambient temperature
- 55 °C
- Weight
- 7.2 kg
- Dimensions (L × W × H)
- 250 × 195.5 × 302 mm
Fcontrol Basic FSDM2.5AM Fcontrol Basic
Item no. 308252
- Rated voltage
- 400 V
- Frequency
- 50 / 60 Hz
- Rated current
- 2.5 A
- Protection class
- IP54
- Max. ambient temperature
- 55 °C
- Weight
- 2.9 kg
- Dimensions (L × W × H)
- 240 × 115 × 284 mm
Fcontrol Basic FSDM5AM Fcontrol Basic
Item no. 308240
- Rated voltage
- 400 V
- Frequency
- 50 / 60 Hz
- Rated current
- 5 A
- Protection class
- IP54
- Max. ambient temperature
- 55 °C
- Weight
- 5.6 kg
- Dimensions (L × W × H)
- 250 × 195.5 × 302 mm
Fcontrol Basic FSDM8AM Fcontrol Basic
Item no. 308241
- Rated voltage
- 400 V
- Frequency
- 50 / 60 Hz
- Rated current
- 8 A
- Protection class
- IP54
- Max. ambient temperature
- 55 °C
- Weight
- 6.5 kg
- Dimensions (L × W × H)
- 250 × 195.5 × 302 mm

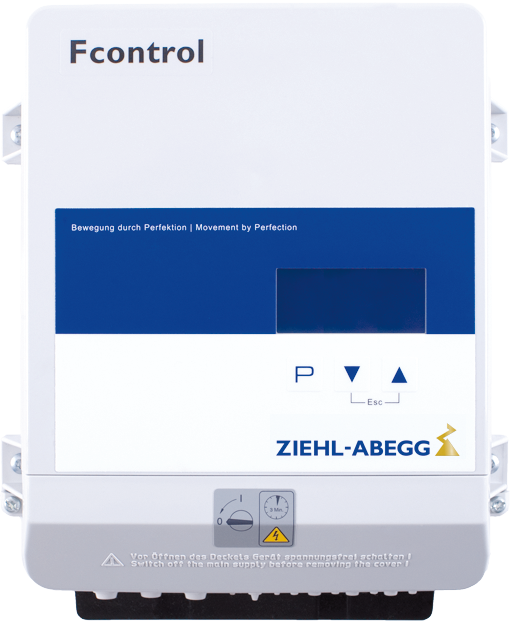

Fcontrol FXDM10AM Fcontrol
Item no. 308142
- Rated voltage
- 400 V
- Frequency
- 50 / 60 Hz
- Rated current
- 10 A
- Protection class
- IP54
- Max. ambient temperature
- 55 °C
- Weight
- 8.2 kg
- Dimensions (L × W × H)
- 250 × 195.5 × 302 mm
