ZAbluefin

ZAbluefin

High-performance radial impeller in various versions

Versatile, optimized for high efficiency and low noise.

  • Biomimetic blade concept

  • Agile flow with up to 7% higher system efficiency possible

  • Perfected diffuser effect

  • More mixed-flow design for more efficient operation even with small device cross-sections

  • Huge energy and operating cost savings

  • ECblue (IE5) motor technology

To model selection ZAbluefin

Technical data

Druck [Pa]
bis 2100
IE Klasse
IE5 (ECblue)
Baugroesse [mm]
250–1120
Volumenstrom [m³/h]
bis 80.000

Models

3 versions of this series — data from the ZIEHL-ABEGG product catalogue.

  • ER63I-4DN.I7.1R

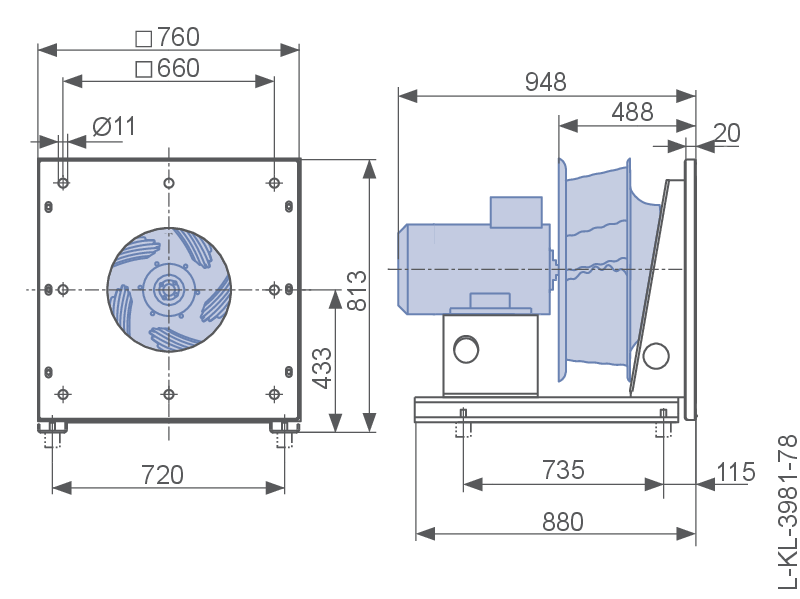

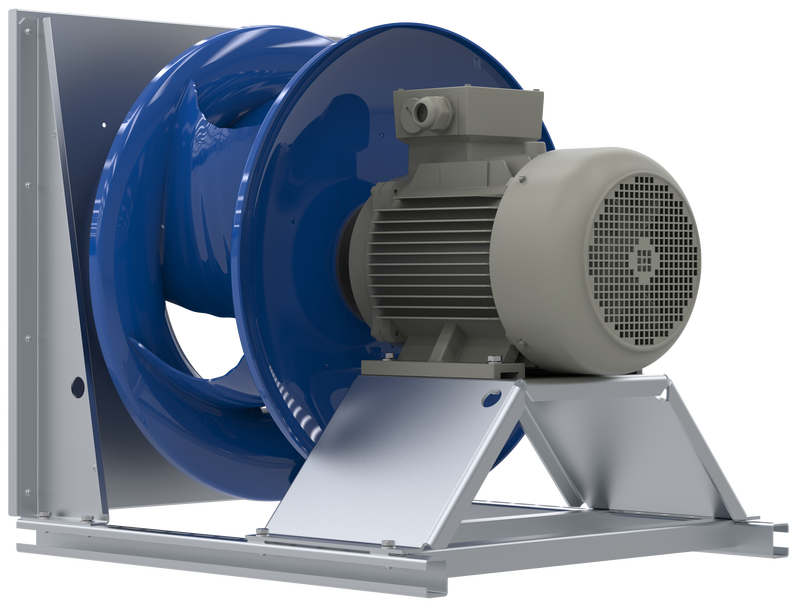

    ZAbluefin ER63I-4DN.I7.1R

    Item no. 117103/0141

    Design
    Plug fan ER
    Size
    630 mm
    Motor technology
    Innenläufer IEC
    Max. air flow
    28,934 m³/h
    Max. pressure
    2,133 Pa
    Efficiency (ηstatA)
    71.6 %
    Conformity
    ErP 2026
    Voltage
    400 / 690 V
    Frequency
    50 Hz
    Phases
    3~
    Protection class
    IP55
    Weight
    157 kg
  • GR56I-ZID.GG.CRP

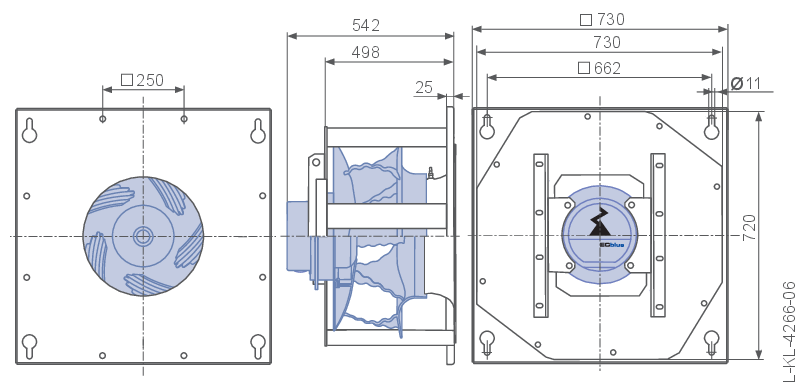

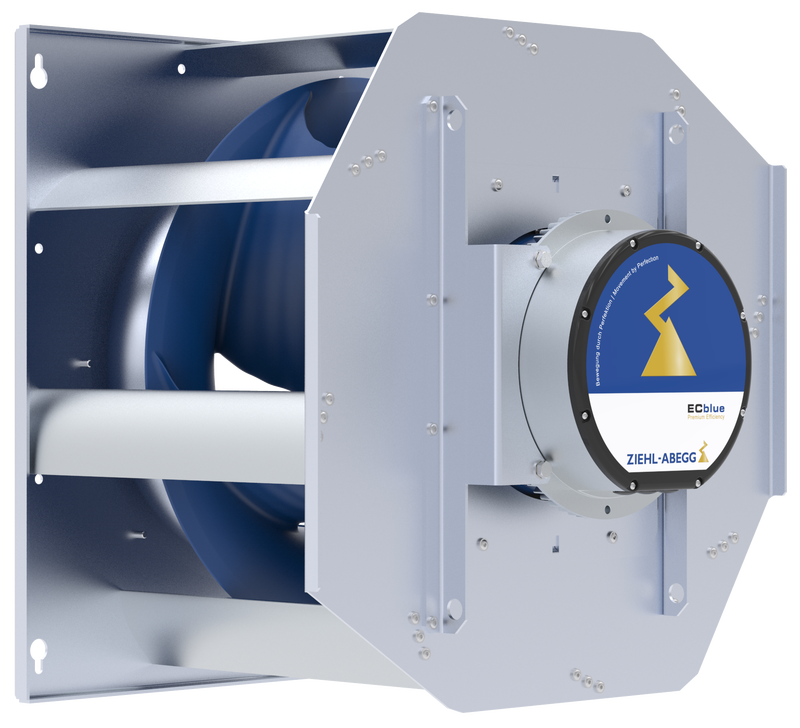

    ZAbluefin GR56I-ZID.GG.CRP

    Item no. 119119/A01

    Design
    ZApilotXL
    Size
    560 mm
    Motor technology
    ECblue
    Max. air flow
    16,965 m³/h
    Max. pressure
    1,091 Pa
    Efficiency (ηstatA)
    75.6 %
    Conformity
    ErP 2026
    Voltage
    400 / 460 V
    Frequency
    60 / 50 Hz
    Phases
    3~
    Protection class
    IP55
    Weight
    57.6 kg
  • GR56I-ZID.GQ.CR

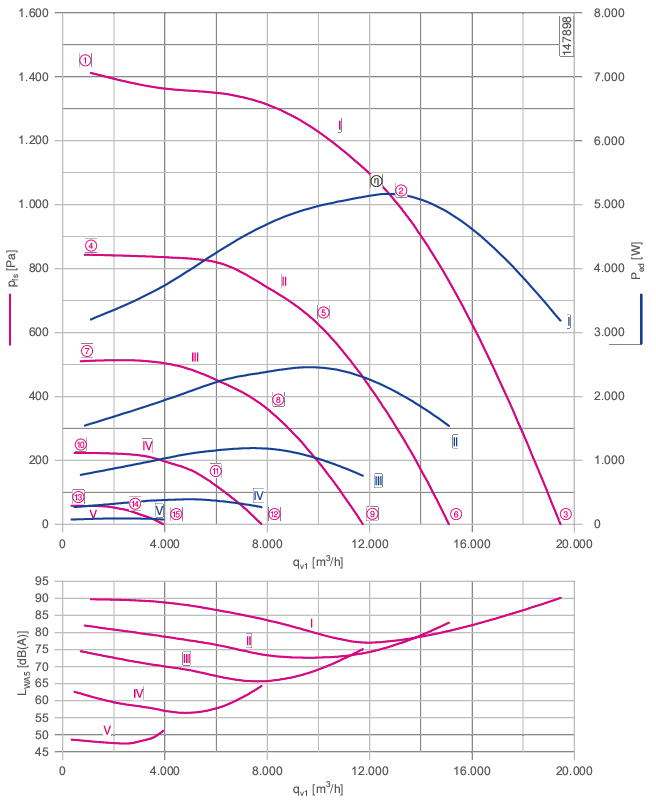

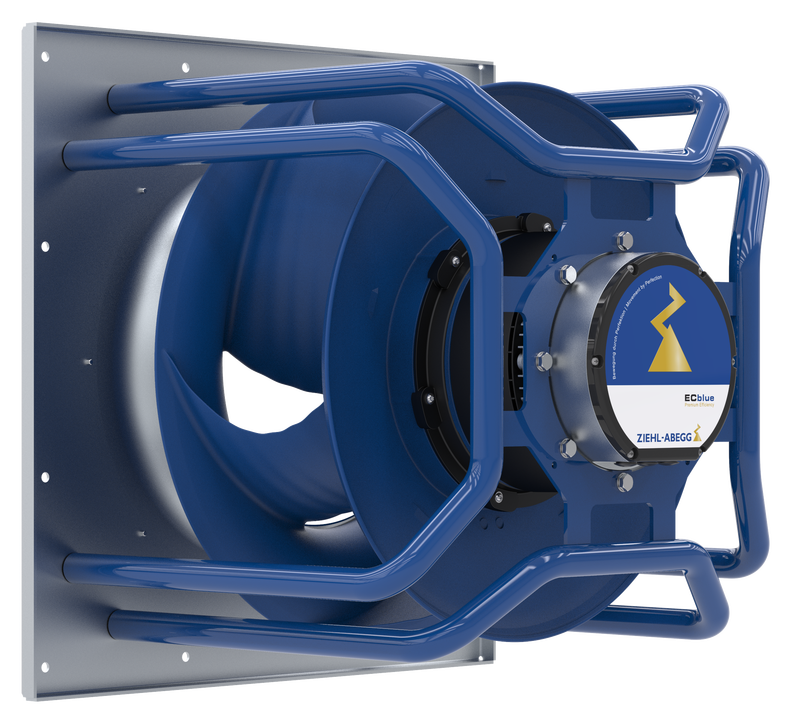

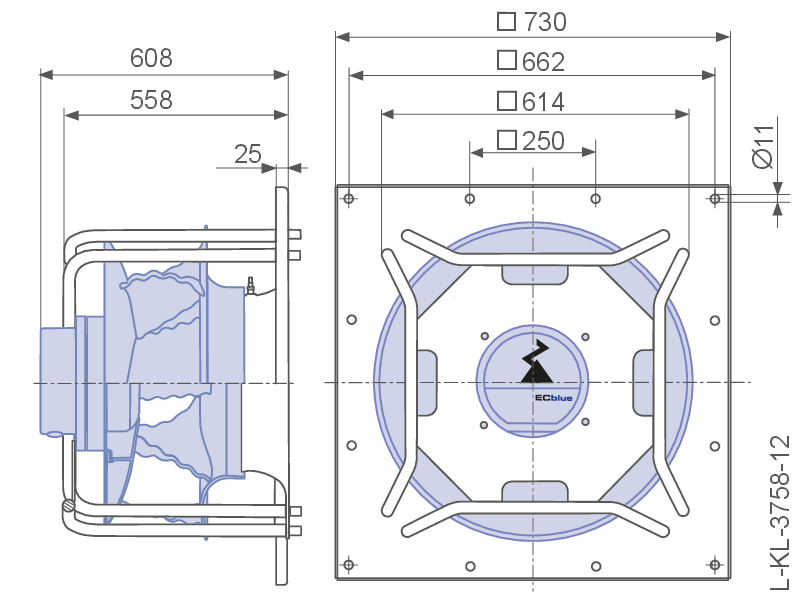

    ZAbluefin GR56I-ZID.GQ.CR

    Item no. 116909/A01

    Design
    Ventilation unit GR
    Size
    560 mm
    Motor technology
    ECblue
    Max. air flow
    19,461 m³/h
    Max. pressure
    1,412 Pa
    Efficiency (ηstatA)
    74 %
    Conformity
    ErP 2026
    Voltage
    400 / 460 V
    Frequency
    60 / 50 Hz
    Phases
    3~
    Protection class
    IP55
    Weight
    67 kg

Fields of application
